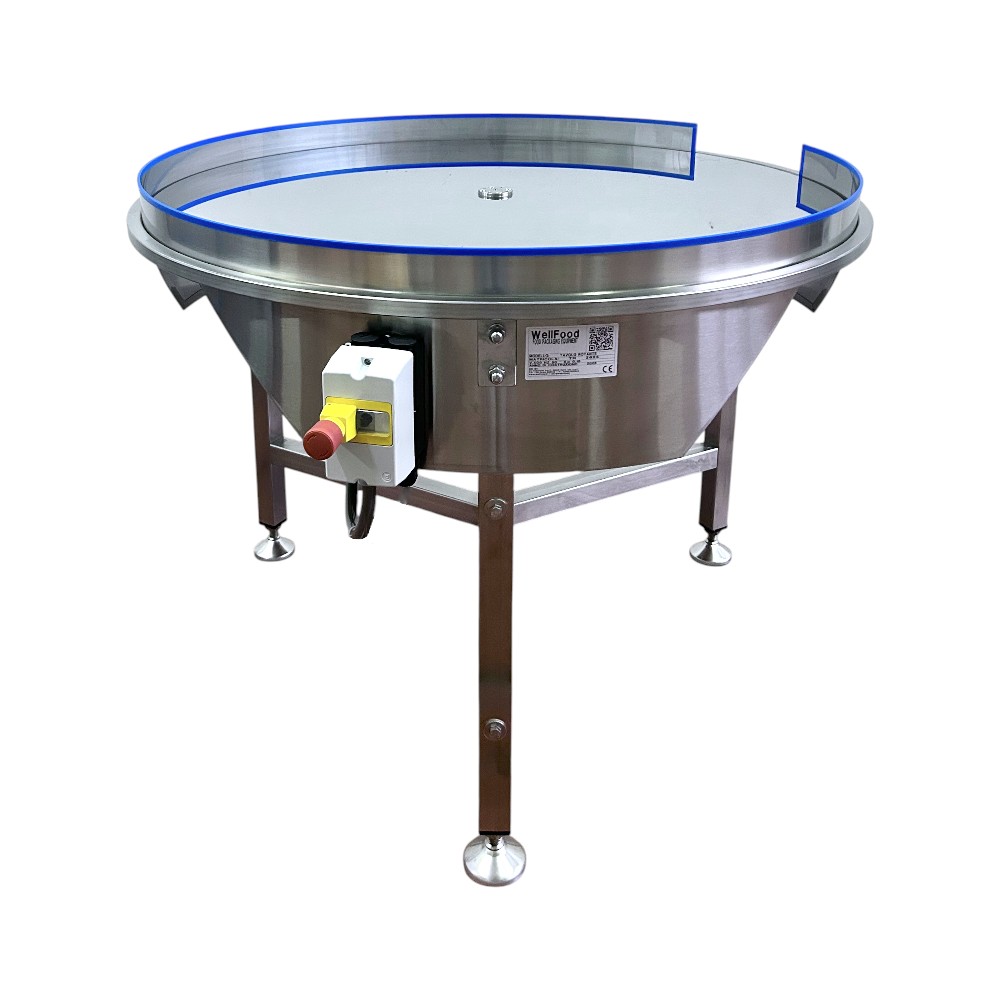

Flat rotating table with side Ø 1000 mm
Flat rotating table with side Ø 1000 mm in stainless steel, designed for product collection, accumulation and alignment at the end of the line. The perimeter side rails contain and guide the products during rotation, preventing falls and improving flow order.
Ideal for automatic and semi-automatic packaging lines in the food, pharmaceutical and cosmetic sectors. Robust, hygienic and easy-to-clean structure, with adjustable speed to suit different production requirements.
Production
Production time: about 15 days
Packaging
The table is placed on a pallet and protected with heat-shrinkable polyethylene
Delivery
Shipping and deliveries to be defined from time to time
| Size | Table |
| Height | 900 mm |
| Width | 1200 mm |
| Length | 1200 mm |
| Assembly required | No |
| Type of packaging | Pallet + PE shrink wrap |
| Weight including packaging | 90 Kg |
| Dimensions including packaging | 1200 x 1200 x 900 mm |
- Table built in brushed stainless steel AISI 304.
- Available diameter 800/ 1000/ 1200/ 1400 mm.
- Adjustable rotation speed from 3 > 14 r.p.m. by motovariator.
- Complete control panel with magneto-thermal motor protection and emergency stop switch.
- Installed power 0,18 kW. - 380 V three-phase/ 220V. single-phase 50 Hz
- Height edge of the disc 810 mm. (Standard)
- Adjustable feet in height +/- 50 mm.
- Manufactured in compliance with CE regulations.
Stainless steel
Structure in stainless steel AISI 304
Motovariator
The speed rotation is adjustable from 3 to 14 revolutions/min by the mechanic variator.
Electrical box
The electrical box is complete with emergency mushroom and magnetothermic switch 16 A. 4P CE
Adjustable foot
Height edge of the disc from the ground is 810 mm. (standard)
Adjustable through feet +/- 50 mm.
CE Certificate
Instruction manual
Optional
- Side and/or disc coated with slippery, impact-resistant plastic material
- Custom height available on request
- Stainless steel swivel castors with locking system
- Adjustable infeed diverter
- Adjustable outfeed diverter and guides complete with chute
- Outfeed product diverting and alignment system
- Infeed loading table
- Infeed/outfeed product chute
- Inverter for start/stop with acceleration/deceleration ramps
- Protective guard for the gearbox
Adjustable outfeed diverter and guides complete with chute
The diverter and its adjustable guides allow handling and alignment of products with different diameters.
Side and/or disc coated with slippery, impact-resistant plastic material
The plastic coating is selected to increase the sliding performance of the surface.
Adjustable infeed diverter
The blade, with adjustable inclination, is used to direct the products toward the center, creating space for incoming products.
Infeed loading table
The loading table is used to load products in batches, optimizing the loading process.
Infeed/outfeed product chute
The chute connects the table to the upstream or downstream machine.
Inverter
Allows smooth start and stop, avoiding abrupt movements.
Protective guard for the gearbox
The structure protects the gearbox from external elements.
Flat rotating table with side Ø 1000 mm
The flat rotary table with side Ø 1000 mm is a professional solution designed for efficient product handling at the end of the line. Thanks to the rotating surface and perimeter containment rails, it allows orderly product collection, accumulation and alignment, improving production continuity.
Accumulation, collection and alignment function
Installed at the inlet or outlet of a conveyor belt, or directly connected to packaging machines, the rotary table acts as an accumulation and distribution station.
The perimeter side rails keep the products within the working area during rotation, preventing dispersion and facilitating manual or automatic picking operations.
Industrial applications
The flat rotary table with side rails is suitable for:
- automatic and semi-automatic end-of-line packaging systems
- horizontal and vertical flow pack machines
- filling, labelling and packaging machines
- packaging lines in the food, pharmaceutical, cosmetic and technical sectors
It can also be used for collecting components at the output of machine tools or assembly lines.
Products to manage
The flat model is ideal for managing:
- jars
- bottles
- containers
- small metal parts
- Small and medium-sized cylindrical components
Structure and materials
The rotating surface and the entire structure are made of stainless steel, ensuring:
- high hygienic standards
- corrosion resistance
- easy cleaning and low maintenance
The rotating disc can also be supplied in low-friction plastic material, depending on the type of product handled.
Adjustment and customization
The rotary table is equipped with a speed variator, allowing rotation to be adjusted according to production needs and line speed.
Custom dimensions, specific side rail configurations and dedicated accessories are available on request, to perfectly integrate the table into existing layouts.
Operational advantages
- improved product flow management at the end of the line
- reduced machine downtime
- greater order and operational safety
- support for packing and boxing operations
| Weight | 70 kg |
|---|---|
| Dimensions | 105 × 105 × 95 cm |
| Diametro | Ø 1000 |
