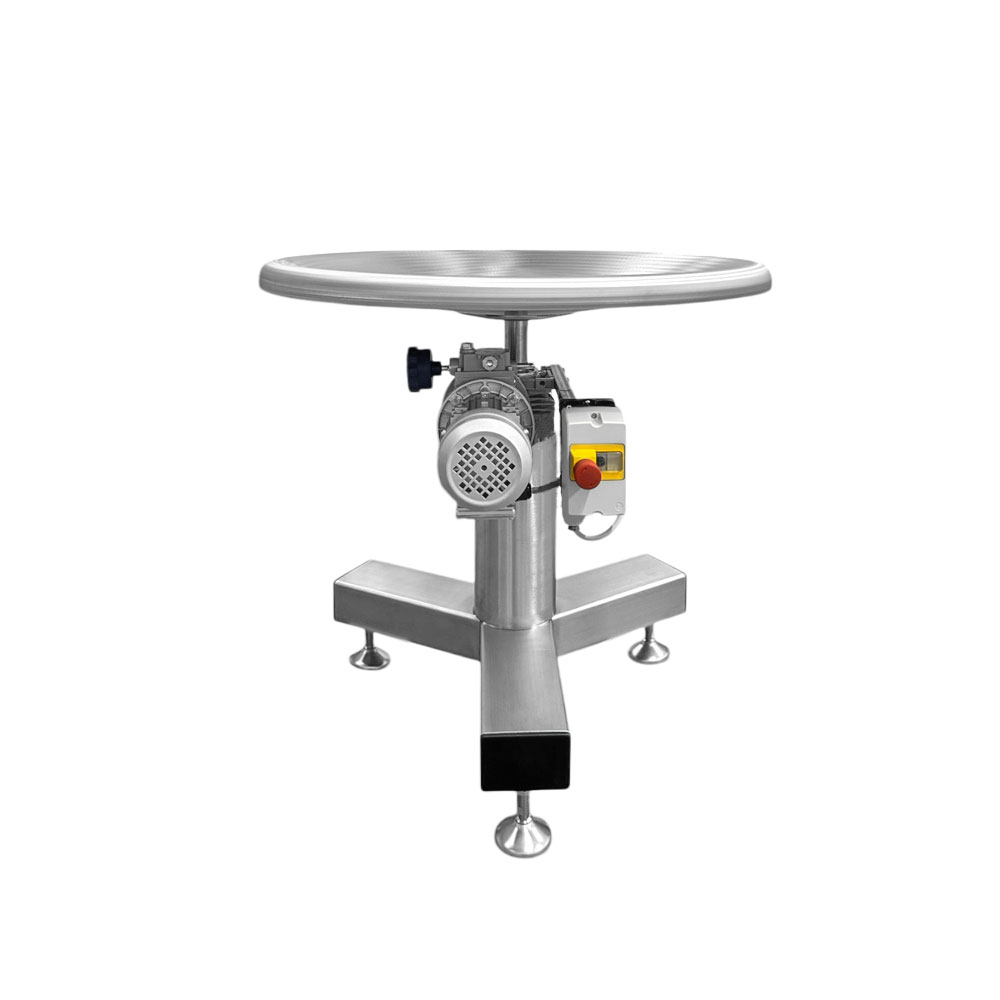

Concave stainless steel rotary table Ø 800 mm
Concave stainless steel rotary table Ø 800 mm
The Concave Rotary Table, unlike the Convex Rotary Table, is designed to collect products placed on the edge of the tray and convey them toward the center of the collecting surface.
Products can arrive from a chute, a conveyor belt, or directly from a horizontal or vertical Flow Pack packaging machine, a shrink-wrap angular sealing machine, a thermoforming machine, etc.
It can also be used in the technical sector for collecting parts exiting machine tools, assembly lines, and similar equipment.
Installed at the end of the packaging line, the Concave Rotary Table acts as an accumulation station, facilitates product discharge from the packaging machine, and assists the operator during picking and boxing operations.
The rotating tray, as well as the entire machine structure, is made of satin-finished AISI 304 stainless steel.
The rotation speed of the disc can be easily adjusted via a mechanical variator control knob.
End-of-line packaging rotary table
- Table built in brushed stainless steel AISI 304.
- Adjustable rotation speed from 3 > 14 r.p.m. by motovariator.
- Complete control panel with magneto-thermal motor protection and emergency stop switch.
- Installed power 0,18 Kw. - 380 V three-phase/ 220V. single-phase 50 Hz
- Height edge of the disc 810 mm. (Standard)
- Adjustable feet in height +/- 40 mm.
- Manufactured in compliance with CE regulations.
Stainless steel
Built in brushed stainless steel aisi 304
Electric motor
Adjustable rotation speed from 3 > 14 r.p.m. by motovariator.
Electric panel
Complete control panel with magneto-thermal motor protection and emergency stop switch.
Adjustable feet
Height from the edge of the disc to the ground of 810 mm (standard).
Adjustable of +/- 40 mm.
CE Certificate
User manual
Optional
- Customized height on request
- Stainless steel swivel casters with locking brake
- Inverter start/stop with acceleration and deceleration ramps
Concave stainless steel rotary table Ø 800 mm
The concave stainless steel rotary table Ø 800 mm is a professional solution designed for the accumulation and channeling of products toward the center of the table surface. Unlike a flat rotary table, the concave shape of the disc naturally guides the products inward, improving flow control at the end of the line.
It is particularly suitable for automatic and semi-automatic packaging lines in the food, pharmaceutical, and cosmetic industries.
Accumulation and central conveying function
Thanks to the concave surface, products are guided toward the central area of the table during rotation. This allows to:
- manage orderly accumulation at the end of the line
- facilitate manual or automatic product pick-up
- reduce misalignment and product falls
- optimize boxing and packing operations
Continuous rotation ensures a constant and smooth flow, even with high production volumes.
Industrial applications
The concave rotary table Ø 800 mm is ideal for:
- end-of-line product accumulation
- conveying products toward the operator
- supporting packaging machines
- automatic and semi-automatic packaging lines
It is suitable for packaged products, bottles, trays, boxes, and small to medium-sized items.
Concave stainless steel surface: hygiene and functionality
The concave surface is made of stainless steel, ensuring:
- high hygienic standards
- easy cleaning and sanitization
- corrosion resistance
- suitability for food contact
The concave model is ideal for handling:
- pillow-pack packages
- doy-pack packages
- vacuum-packed products
- heat-sealed packages
- pouches and bags
- trays and boxes
- small to medium-sized items
Solid structure and operational stability
The supporting structure of the concave rotary table is designed to ensure:
- stability during operation
- reduced vibrations
- reliability even in continuous working conditions
Adjustable feet allow proper leveling and easy installation within the production line.
Integration into packaging lines
The concave rotary table Ø 800 mm integrates easily into new or existing systems.
The adjustable rotation speed allows the table to be adapted to the specific needs of the line, improving synchronization with upstream and downstream machines.
Main advantages
- Natural product conveying toward the center
- Improved end-of-line accumulation management
- Reduced downtime
- High hygienic standards
- Robust and durable structure
- Easy maintenance
- Ideal for food and packaging industries
| Weight | 50 kg |
|---|---|
| Dimensions | 800 × 800 × 810 cm |
| Diametro | Ø 800 |
