Flat rotating table Ø 1200
Rotary table for collection products.
Positioned at the end of a conveyor belt or at the output of a packaging, filling, labeling machines, it functions as a storage station. The rotating tables collects the products to optimize the canning operations, allowing a constant flow. The rotating tables are equipped with a speed variator to adapt the speed to the previous machine. The stainless steel disc may be covered in a slippery plastic material.
- Table built in brushed stainless steel AISI 304.
- Available diameter 800/ 1000/ 1200/ 1400 mm.
- Adjustable rotation speed from 3 > 14 r.p.m. by motovariator.
- Complete control panel with magneto-thermal motor protection and emergency stop switch.
- Installed power 0,18 kW. - 380 V three-phase/ 220V. single-phase 50 Hz
- Height edge of the disc 810 mm. (Standard)
- Adjustable feet in height +/- 40 mm.
- Manufactured in compliance with CE regulations.
Stainless steel
Structure in stainless steel AISI 304
Motovariator
The speed rotation is adjustable from 3 to 14 revolutions/min by the mechanic variator.
Electrical box
The electrical box is complete with emergency mushroom and magnetothermic switch 16 A. 4P CE
Adjustable foot
Height edge of the disc from the ground is 810 mm. (standard)
Adjustable through feet +/- 40 mm.
CE Certificate
Instruction manual
Optional
- Disc coated with slippery, impact-resistant plastic material
- Custom height available on request
- Stainless steel swivel castors with locking system
- Adjustable infeed diverter
- Inverter for start/stop with acceleration/deceleration ramps

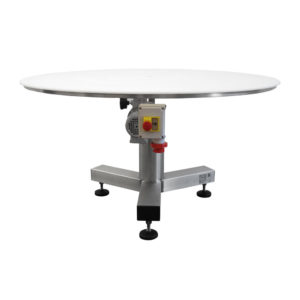

Disc coated with slippery, impact-resistant plastic material
The plastic coating is selected to increase the sliding performance of the surface.
Adjustable infeed diverter
The blade, with adjustable inclination, is used to direct the products toward the center, creating space for incoming products.
Inverter
Allows smooth start and stop, avoiding abrupt movements.
Flat Rotating Table in Stainless Steel Ø 1200 mm
The flat rotating table Ø 1200 mm. in stainless steel is a professional solution designed for product accumulation and collection. Unlike the concave rotary table, the flat surface allows products to remain upright, preventing material from shifting inside the packaging.
It is particularly suitable for automatic and semi-automatic packaging lines in the food, pharmaceutical, and cosmetic sectors.
Accumulation and Collection Function
Installed at the outlet of a conveyor belt, the flat table allows you to:
- manage accumulation in an orderly manner
- facilitate manual or automatic picking
- handle packages gently while keeping them upright
- optimize boxing operations
Continuous rotation ensures a steady and regular flow even with high production volumes.
Industrial Applications
The Ø 1200 mm flat rotating table is ideal for:
- end-of-line product accumulation
- support for packaging machines
- automatic and semi-automatic packaging lines
- handling products that require uniform external processing
Products to Be Handled
The flat model is ideal for handling:
- various types of packaging
- pouches and bags
- jars
- trays and boxes
- plastic components
- small and medium-sized items
Stainless Steel Flat Surface: Hygiene and Functionality
The flat disc is made of stainless steel, ensuring:
- high hygiene standards
- easy cleaning and sanitization
- corrosion resistance
Solid Structure and Operational Stability
The supporting structure of the flat rotary table is designed to ensure:
- stability during operation
- reduced vibrations
- reliability even under continuous working conditions
Adjustable feet allow proper leveling and easy installation within the production line.
Integration into Packaging Lines
The Ø 1200 mm flat rotary table integrates easily into new or existing systems.
Adjustable rotation speed allows the operation to be adapted to the specific needs of the line, improving synchronization with upstream and downstream machines.
Main Advantages
- Improved end-of-line accumulation management
- Reduced downtime
- High hygiene standards
- Robust and durable structure
- Easy maintenance
- Ideal for the food and packaging sectors
| Weight | 75 kg |
|---|---|
| Dimensions | 1200 × 1200 × 900 cm |
| Diametro | Ø 1200 |
